The Inner Workings: A Guide to Your Furnace's Essential Sensors

Understanding Your Furnace's Critical Safety Component

A furnace limit switch is a safety device that monitors the temperature inside your furnace and automatically shuts off the system when temperatures get too high, preventing overheating and potential fire hazards.

Quick Facts About Furnace Limit Switches:

• Primary Function: Monitors furnace temperature and prevents overheating
• Safety Role: Shut off gas flow to burners when temperatures exceed safe limits
• Efficiency Role: Controls blower fan operation for optimal heating
• Location: Typically found in the furnace plenum (air chamber)
• Common Settings: Fan on at 100°F, fan off at 130°F, high limit shutoff at 200°F

There's nothing quite like getting all cozied up to enjoy some delicious furnace-supplied warmth, only to be met with a blast of cool air. If this sounds familiar, your furnace limit switch might be the culprit.

Your furnace relies on several sensors to operate safely and efficiently. The limit switch acts as your heating system's guardian - preventing dangerous overheating while ensuring your home gets the consistent warmth you need. When this small but mighty component fails, it can leave you without heat or cause your furnace to cycle on and off unpredictably.

Understanding how your furnace limit switch works can help you recognize problems early, potentially saving you from costly repairs and keeping your family safe from hazards like carbon monoxide exposure.

What is a Furnace Limit Switch and Why is it Crucial?

Think of your furnace limit switch as the responsible adult in your heating system – always keeping an eye on things to make sure nothing gets out of hand. This small but mighty component works around the clock as a safety device that monitors temperatures inside your furnace and steps in when things get too hot for comfort.

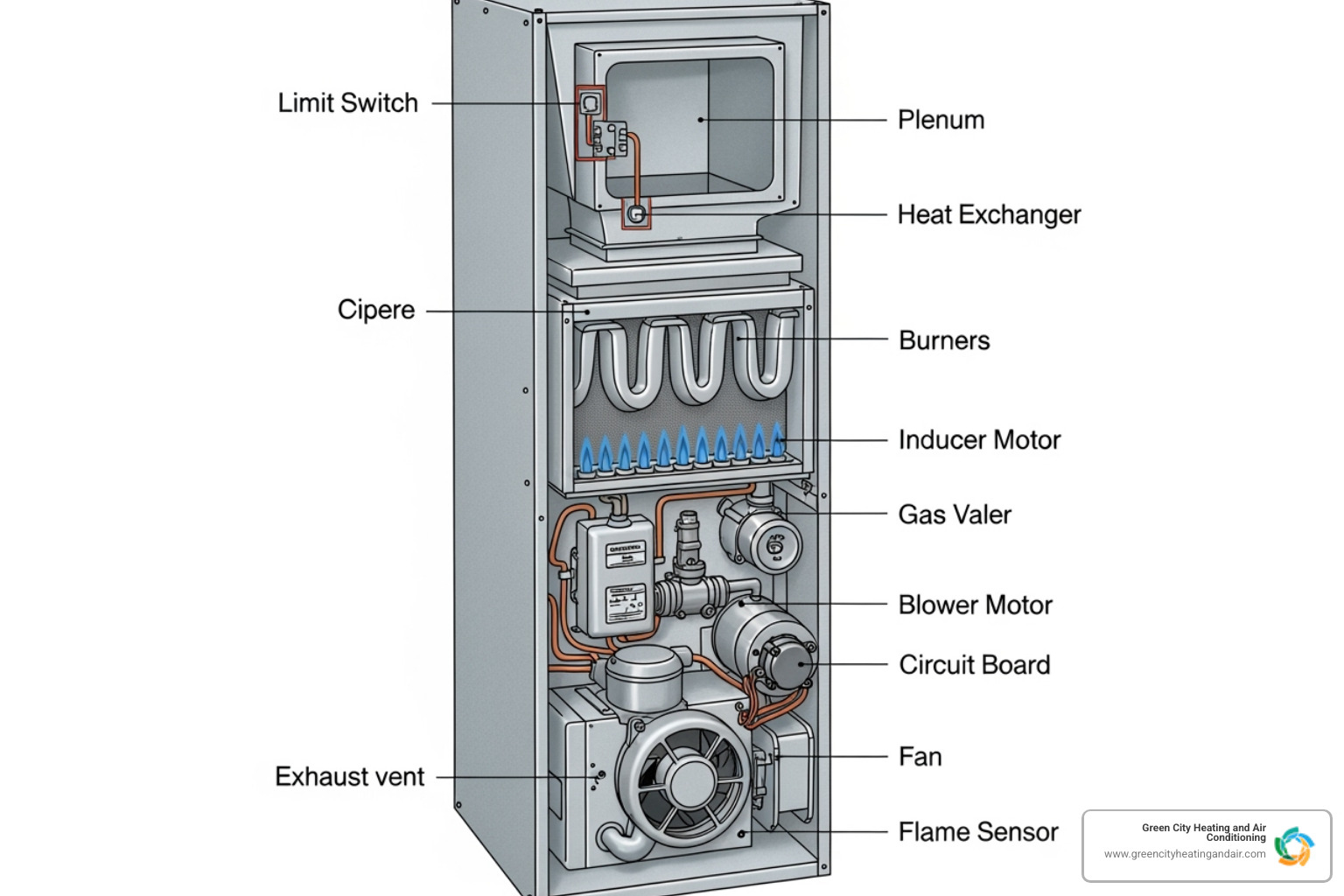

Located in your furnace's plenum (that's the chamber where heated air gathers before traveling through your ducts), the furnace limit switch has one primary job: temperature regulation. When your furnace is working hard to keep you warm, this switch continuously checks the internal temperature to prevent overheating.

Here's where things get serious. Without a properly functioning limit switch, your furnace could overheat and damage the heat exchanger – the component that separates combustion gases from the air that circulates through your home. A cracked heat exchanger can allow dangerous gases, including carbon monoxide, to leak into your living spaces. That's a carbon monoxide risk no family should face.

The Primary Functions: Safety and Efficiency

Your furnace limit switch pulls double duty as both a safety guardian and an efficiency expert. It's like having a smart friend who knows exactly when to turn things on and off to keep everyone comfortable.

On the safety side, this dual-role component springs into action by shutting off burners whenever temperatures climb beyond safe limits. This immediate response prevents fire hazards and protects your heat exchanger from damage that could lead to costly repairs or dangerous gas leaks.

But the limit switch doesn't stop there. It also plays a crucial role in controlling the blower fan to ensure your home gets heated evenly and efficiently. When your furnace first fires up, the burners create heat, but the blower fan waits patiently until the air inside reaches the right temperature – usually around 100°F. That's when the limit switch signals the fan to start pushing that warm air through your ducts, ensuring even heating throughout your home.

Once your thermostat is satisfied and the burners shut off, the blower continues running until the internal temperature drops to about 130°F. Then the limit switch tells it to take a break. This smart cycling prevents your fan from blowing cold air through your vents and maximizes system efficiency by using every bit of heat your furnace produces.

Limit Switch vs. Pressure Switch: What's the Difference?

Many homeowners confuse these two important safety components, and honestly, we get it – they both have "switch" in their names and both keep your furnace running safely. But they're actually quite different watchdogs guarding different aspects of your system.

Feature	Furnace Limit Switch	Furnace Pressure Switch
Function	Temperature monitoring and control	Air Pressure monitoring in venting system
Location	Plenum (near heat exchanger)	Motor Compartment (near inducer motor)
Failure Symptoms	Blower issues (runs continuously, short cycling, no heat)	No ignition (furnace won't start or shuts off quickly)

Your furnace limit switch is all about temperature – making sure your furnace doesn't get too hot and controlling when the blower runs. The pressure switch, on the other hand, checks that exhaust gases are properly venting outside your home. If there's a blockage in your flue or venting system, the pressure switch will shut things down before dangerous gases can back up into your house.

Both switches are essential for safe operation, but they're monitoring completely different potential problems. Think of them as specialized security guards – one watches the temperature, the other watches the exhaust system.

How Your Furnace's Sensors Operate

Understanding how your furnace limit switch actually works might seem technical, but it's really quite fascinating once you break it down. Think of it as your furnace's built-in thermometer with a brain - constantly monitoring temperatures and making smart decisions to keep your home comfortable and safe.

Most furnace limit switches rely on one of two main sensing technologies. The first is a bimetallic strip - essentially two different metals fused together that expand and contract at different rates when heated. As your furnace warms up, this strip bends, and when it bends far enough, it triggers an electrical contact. The second type uses a temperature probe that directly measures heat and sends electrical signals to your furnace's control board.

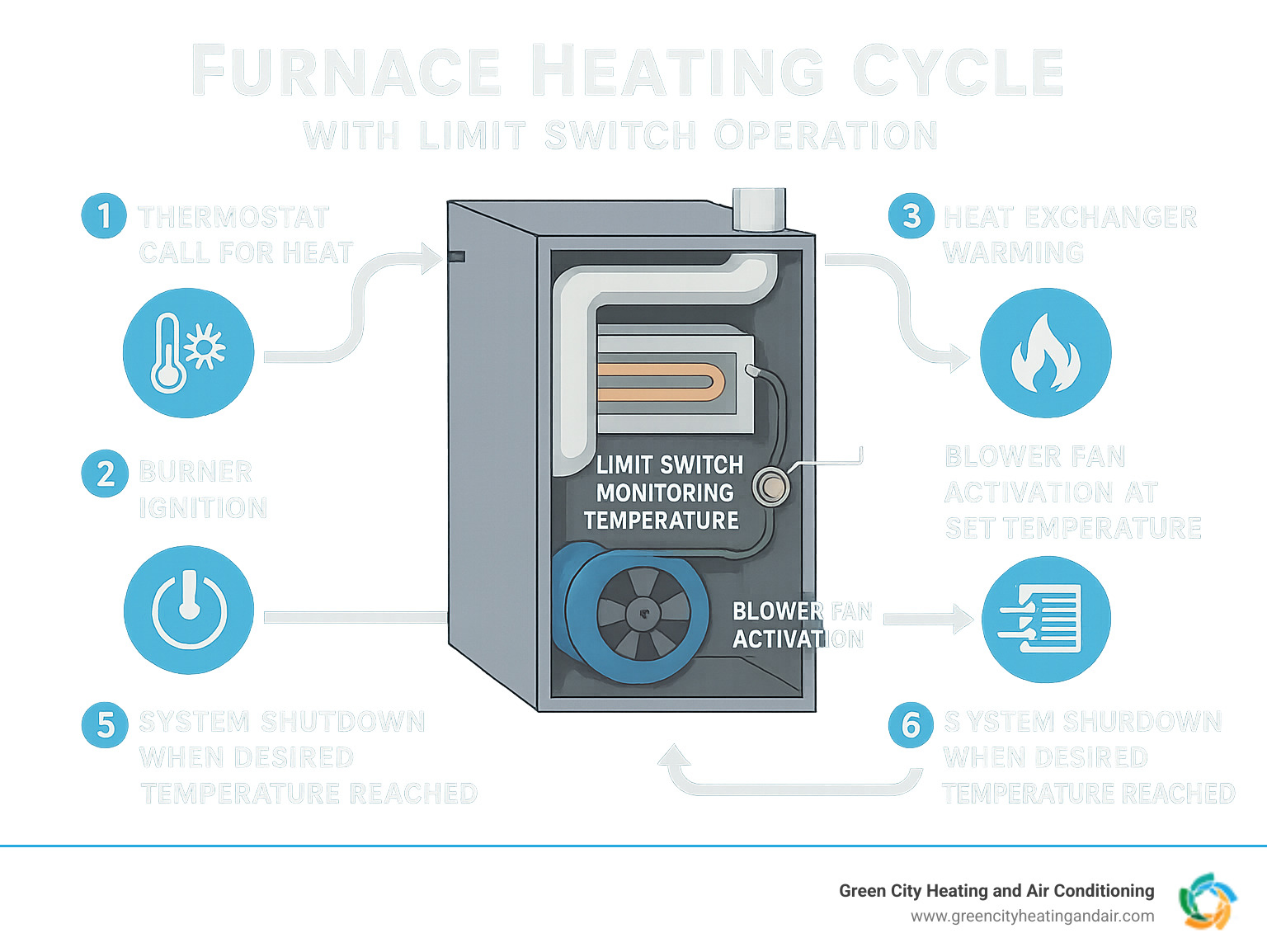

Here's how this all comes together during a typical heating cycle. When your thermostat signals that your home needs more heat, your furnace springs into action with burner ignition. As those flames heat the air in your heat exchanger and plenum, your furnace limit switch is quietly doing its job, monitoring every degree of temperature change.

Once the air reaches that perfect "fan on" temperature (usually around 100°F), the limit switch closes a circuit and tells your blower motor it's showtime. This is when you'll hear your furnace's fan kick in, ready to push all that lovely warm air through your vents and into your living spaces.

The blower continues working hard, distributing heat throughout your home while simultaneously cooling down the furnace internals. When temperatures drop to the "fan off" setting (typically around 130°F) or your thermostat is satisfied, the burners shut off. But here's the clever part - the blower keeps running for a bit longer to squeeze every last bit of heat from your furnace before the limit switch tells it to rest.

Most importantly, if something goes wrong and temperatures spike above that critical "high limit" cutoff (around 200°F), your furnace limit switch immediately cuts power to the burners. No questions asked, no waiting around - it's an instant safety shutdown that protects your home and family.

Types of Limit Switches

Not all furnace limit switches are created equal, and the type you have depends largely on your furnace's age and model. We've seen quite a variety over our years of service calls!

The high limit switch is the most straightforward type - it's a single-purpose safety device focused entirely on preventing overheating. This switch monitors temperatures in your heat exchanger or plenum and acts as your furnace's emergency brake when things get too hot.

Older furnaces often feature a fan limit switch, which is like the Swiss Army knife of furnace controls. This dual-purpose component handles both blower fan timing and high-temperature safety. You'll typically recognize it by its long probe that extends right into the furnace's heat chamber.

Modern furnaces have gotten smarter with combination fan/limit switches or integrated digital control boards. These systems combine all the functions into one sophisticated component that manages both your blower cycling and safety shutoffs with precise electronic controls.

When it comes to resetting after a problem, most current furnace limit switches are the "automatic reset" type. Once your furnace cools down from whatever caused the trip, the switch resets itself and allows the system to try starting again. It's convenient and usually indicates a minor, temporary issue.

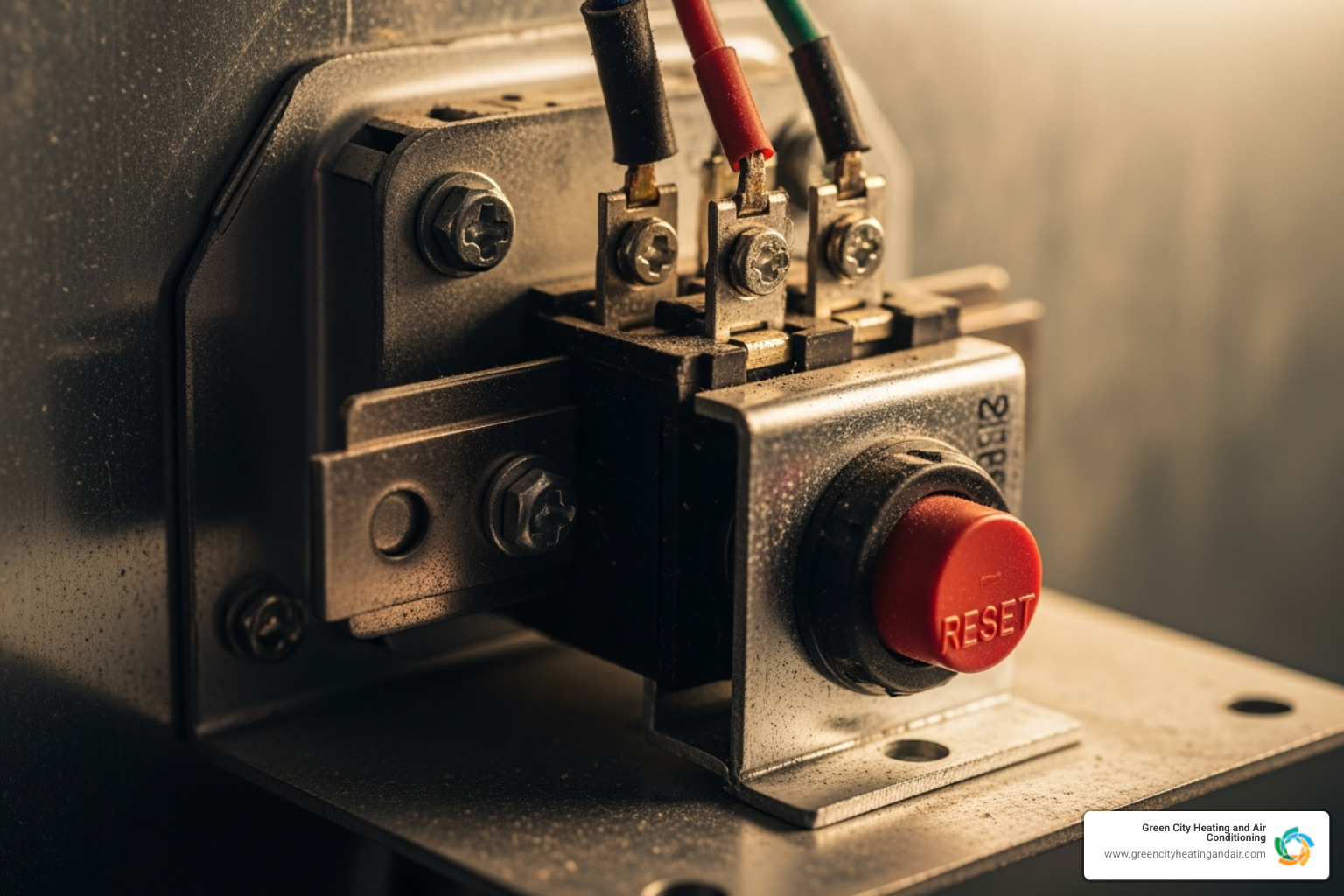

However, some older systems and specialized safety switches are "manual reset" devices. If one of these trips, you'll need to physically press a small reset button before your furnace will work again. When we encounter manual reset switches that have tripped, it's often a sign of a more serious underlying problem that needs our immediate attention.

Understanding Temperature Settings

Your furnace limit switch operates on very specific temperature thresholds that are carefully calibrated at the factory. These aren't random numbers - they're precisely engineered for your furnace model's safe and efficient operation.

The "fan on" temperature is typically set around 100°F. This is when your limit switch decides there's enough warm air in the plenum to effectively heat your home and signals the blower to start distributing that comfort throughout your house.

The "fan off" temperature usually kicks in around 130°F. After your burners shut off and the furnace begins cooling down, the blower continues running until this temperature is reached. This ensures you get every bit of heat you paid for, rather than letting it just sit inside your furnace.

The "high limit" cutoff is the most critical setting, typically around 200°F. This is your furnace's absolute safety line in the sand. If internal temperatures ever reach this point, your furnace limit switch immediately shuts down the burners to prevent dangerous overheating, equipment damage, or safety hazards.

These factory presets are the result of extensive testing and engineering to balance efficiency with safety. We never recommend adjusting these settings, as they're specifically designed to protect both your equipment and your family while ensuring optimal performance.

Is Your Furnace Limit Switch Failing? Signs and Causes

Picture this: you're settling in for a cozy evening at home when suddenly your furnace starts acting like it can't make up its mind. It runs for a few minutes, shuts off, then fires up again shortly after. Or maybe your blower fan has decided it's going to run a marathon, never taking a break even when your home is plenty warm.

These frustrating scenarios often point to one culprit: a failing furnace limit switch. While this little component is built tough and designed to last, it's not invincible. After years of faithfully monitoring temperatures and cycling on and off, even the most reliable limit switch can start showing its age.

When your furnace limit switch begins to fail, it's like having a smoke detector with a dying battery - it might work sometimes, but you can't count on it when you really need it. The good news? Your furnace will usually give you plenty of warning signs before things get serious.

Telltale Signs of a Bad Furnace Limit Switch

Your furnace has its own way of crying for help, and recognizing these distress signals early can save you from a cold night and expensive emergency repairs. Here's what to watch for when your furnace limit switch starts going bad.

The most obvious sign is when your blower runs continuously, even after your home has reached the perfect temperature. It's like your furnace forgot how to take a break. This happens when the limit switch gets stuck in the "on" position or loses its ability to accurately sense when the furnace has cooled down enough to shut off the fan.

Furnace short cycling is another red flag we see all the time. Your system fires up with enthusiasm, heats for just a few minutes, then suddenly gives up and shuts down. A few minutes later, it tries again with the same disappointing result. This stop-and-start dance usually means the furnace limit switch is tripping too early, either from a faulty temperature reading or because something is actually causing your furnace to overheat.

Sometimes you'll notice no heat or cool air from vents even though you can hear your furnace running. When this happens, the limit switch might not be telling the blower to kick in when there's warm air ready to distribute. All that lovely heat just sits there in the furnace with nowhere to go.

In more severe cases, your system won't turn on at all. A completely failed furnace limit switch can act like a stubborn gatekeeper, refusing to let your furnace start its heating cycle. You'll adjust the thermostat, hear some clicking sounds, but nothing happens.

Watch for inconsistent heating throughout your home too. If some rooms feel like a tropical paradise while others remind you of an ice cave, your limit switch might be struggling to maintain proper temperature control and blower timing.

Common Causes of a Tripped or Failed Switch

Here's the thing about furnace limit switches - they're actually pretty honest components. When they trip repeatedly or fail completely, they're usually trying to tell you something important about your heating system.

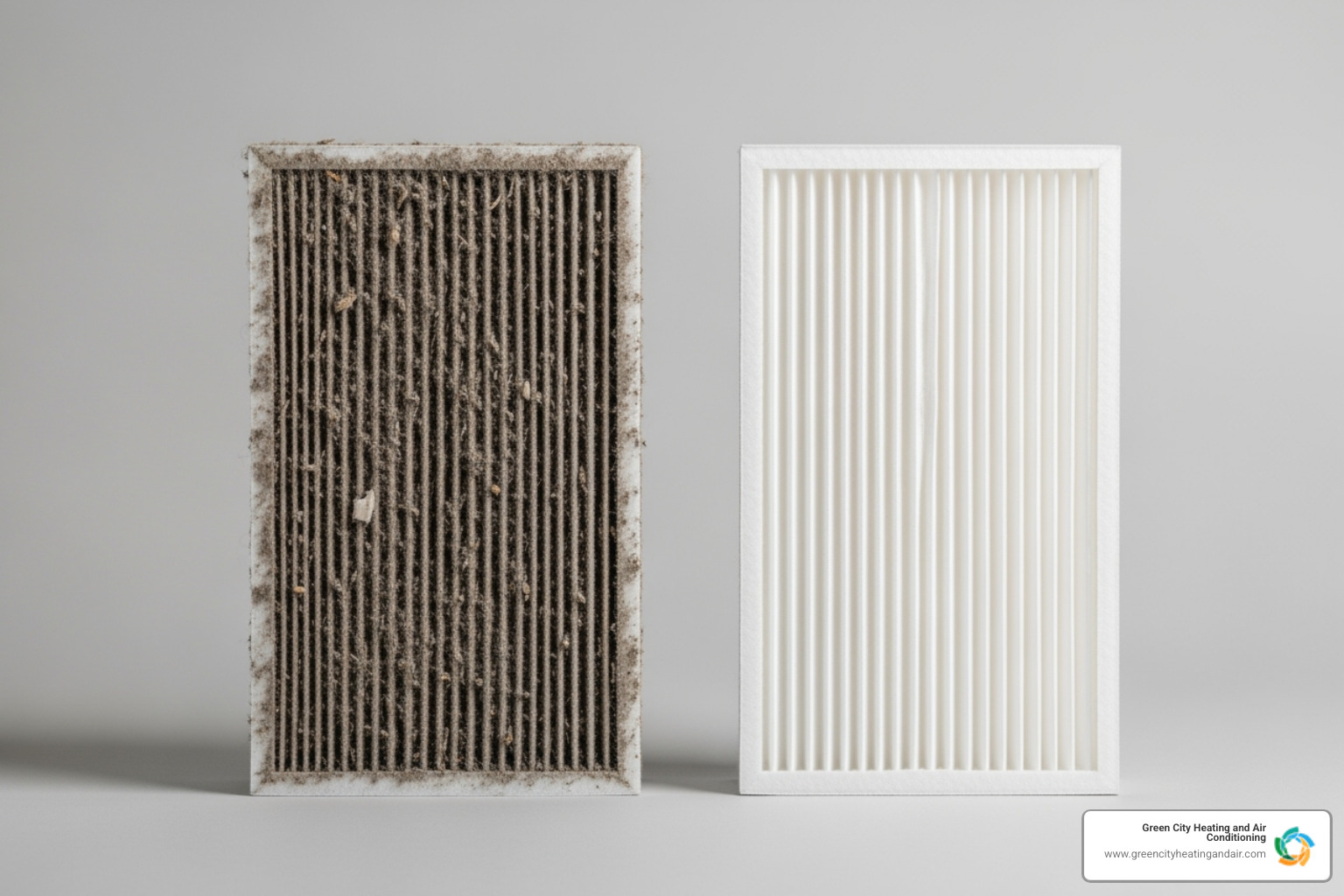

The number one troublemaker? A dirty air filter. We can't stress this enough - a clogged filter is like trying to breathe through a pillow. Your furnace works harder and harder to push air through that blockage, heat builds up with nowhere to go, and your furnace limit switch does exactly what it's supposed to do: shut things down before damage occurs.

Blocked vents and registers create the same problem in a different location. That ottoman you moved in front of the return vent, or the stack of holiday decorations covering a floor register, might seem harmless. But they're actually choking your system's airflow and forcing your limit switch to work overtime.

A malfunctioning blower motor is like having a weak heart in your heating system. If it's running too slowly, making weird noises, or cutting out intermittently, it can't move enough air to keep your furnace cool. The result? Your furnace limit switch trips to prevent overheating.

Sometimes the problem is with the dirty temperature sensor itself. After months or years of operation, dust and grime can build up on the sensor contacts. When this happens, the switch might not read temperatures accurately or might lose its electrical connection entirely.

Old age and component wear eventually catch up with every furnace limit switch. These components go through thousands of heating cycles, constantly expanding and contracting with temperature changes. Eventually, the internal mechanisms can wear out, just like any hardworking part of your home.

Less commonly, we see issues with oversized furnaces that heat too quickly and reach their temperature limits before proper air circulation can occur. Faulty gas valves that supply too much fuel or thermostat problems that send mixed signals can also force your limit switch to intervene more often than it should.

The key is understanding that a tripping furnace limit switch isn't the enemy - it's your furnace's way of protecting itself and your family from potentially dangerous overheating situations.

A Homeowner's Guide to a Faulty Switch: Repair, Costs, and Prevention

When your furnace limit switch starts acting up, it's natural to wonder whether you can handle the repair yourself or if it's time to call in the professionals. We completely understand the temptation to save some money with a DIY approach - after all, nobody likes unexpected repair bills. However, when it comes to your furnace's safety components, there's really no room for error.

The reality is that furnaces are complex systems that combine high-voltage electricity with flammable gas, making them potentially dangerous for inexperienced hands. A small mistake during a furnace limit switch replacement could lead to serious consequences, from damaging your entire heating system to creating fire hazards or carbon monoxide leaks. That's why we always prioritize safety over savings when advising homeowners.

DIY Replacement: Is It a Good Idea?

Let's be honest - while it's technically possible for a very experienced homeowner to replace a furnace limit switch, we rarely recommend going the DIY route. Over our years of service, we've seen too many well-intentioned repair attempts that ended up causing more problems than they solved.

If you're absolutely determined to try some basic troubleshooting first, here's what you need to know. Always start by turning off both the electrical power and gas supply to your furnace - this isn't optional, it's essential for your safety. You'll find the electrical shutoff at your main breaker panel, and the gas valve should be near your furnace.

Once you've safely shut everything down, you can try a visual inspection of the furnace limit switch. Sometimes, the problem is as simple as dust and grime buildup on the sensor, which you can carefully clean away. If you're comfortable using a multimeter and have electrical experience, you might test the switch for proper continuity when it's at room temperature.

However, we strongly recommend calling a professional if you encounter anything beyond basic cleaning. The electrical hazards alone make this a risky job for most homeowners, and gas furnaces add another layer of complexity that requires specialized knowledge. Our experienced technicians have the training and tools to diagnose the real problem and fix it safely the first time.

The Cost of Repair vs. Replacement

The good news about furnace limit switch problems is that they're typically among the more affordable furnace repairs you might face. The part itself is relatively inexpensive - you might find one for around twenty dollars if you're shopping for parts yourself.

When you factor in professional installation, the total cost usually falls into a very reasonable range. Several factors can influence the final price, including your specific furnace model and local labor rates in the Seattle area. Some older or specialty furnaces might require harder-to-find parts, which can affect the cost slightly.

What we've found over the years is that homeowners who invest in professional repair for critical safety components like the furnace limit switch almost always feel it was money well spent. You get the peace of mind that comes with knowing the job was done correctly, plus you often catch other potential issues during the service call that might have become bigger problems later.

Preventative Maintenance for a Healthy Furnace

Here's where we get excited to share some really valuable information with you. The absolute best way to avoid furnace limit switch problems is through consistent preventative maintenance. It's amazing how much trouble you can prevent with just a few simple habits.

Regular filter changes are hands down the most important thing you can do for your furnace. We recommend checking your filter monthly and replacing it every one to three months, depending on your home's specific needs. If you have pets or family members with allergies, you'll probably need to change it more frequently. A clean filter ensures proper airflow, which is crucial for preventing the overheating that causes limit switch problems.

Keeping your vents clear is equally important but often overlooked. Take a walk around your home and make sure furniture, rugs, or curtains aren't blocking your return and supply vents. When air can't flow freely through your system, it creates the same overheating conditions that a dirty filter causes.

Annual professional tune-ups are where we can really help extend your furnace's life and improve its efficiency. During these visits, our certified technicians clean and inspect your furnace limit switch, check airflow throughout your entire system, and perform comprehensive safety checks. We'll also evaluate your furnace's Annual Fuel Utilization Efficiency to make sure you're getting the most from your heating investment.

This regular maintenance approach doesn't just keep your furnace limit switch working properly - it helps us catch small issues before they turn into major repairs. We've seen countless situations where a simple annual tune-up prevented a complete system breakdown in the middle of winter. The importance of regular furnace maintenance really can't be overstated when it comes to your family's comfort and safety.

Conclusion

Your furnace limit switch may be small, but it's mighty when it comes to keeping your home safe and comfortable. Think of it as your heating system's personal bodyguard - always on duty, watching temperatures, and ready to step in when things get too hot to handle.

Throughout this guide, we've finded how this little component wears multiple hats. It's your safety watchdog, preventing dangerous overheating that could lead to fires or carbon monoxide leaks. It's also your efficiency manager, making sure your blower fan kicks in at just the right moment to distribute that cozy warm air throughout your home.

The key takeaways? Know the warning signs - if your blower runs constantly, your furnace short cycles, or you're getting cool air when you want heat, your limit switch might be crying for help. Address the root causes - most limit switch problems stem from dirty filters, blocked vents, or airflow issues that are totally preventable.

While it's tempting to tackle furnace repairs yourself, your furnace limit switch is connected to both electrical and gas systems. A simple mistake can turn into a dangerous situation pretty quickly. Sometimes the smartest DIY move is knowing when to call in the professionals.

The best news? Prevention is your friend. Keep those filters fresh, vents clear, and schedule annual tune-ups. These simple steps will keep your limit switch happy and your furnace running smoothly for years to come.
